Wear – resistant Slurry Pump

  • Lined with red rubber; patented product;with international top quality
  • Wear-resistant index ＞128%, service life is 3-6 times of the ordinary pumps
  • Light impeller, energy saved by 40%
  • High flow rate, high head, efficiency improved by 30%
  • Less abrasion, easy maintenance, noise reduced by 60%, low running cost

Purchase now

0086 13810327080

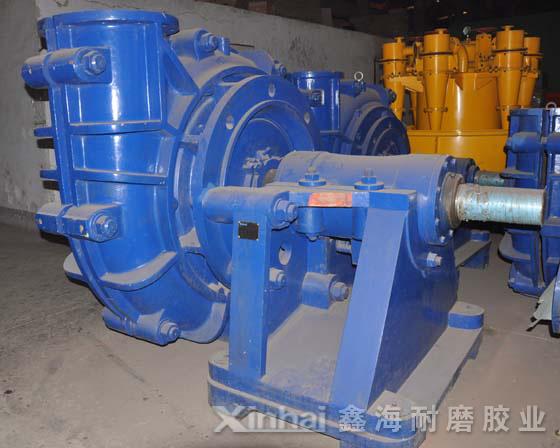

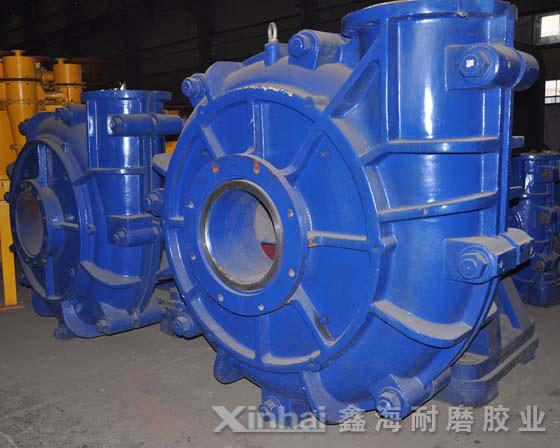

Wear – resistant Slurry Pump
  • Wear – resistant Slurry Pump
  • Wear – resistant Slurry Pump
  • Wear – resistant Slurry Pump

Product performance

With high wear-resistant index of 128%, a real durable product.

Impeller and lining are lined with Xinhai wear-resistant rubber.Wear-resistant index is over 128%.

The service life of Xinhai XPA slurry pump is 3-6 times of nickel chrome pump under the same working conditions,and it has reached the national top quality. Moreover, it reduces the noise by 60% compared with the metal material.

National level of green energy consumption, energy saved by 40%
Unique wear-resistant rubber wet-parts
Corrosion and wear resistance
Lower specific gravity than metal
Energy consumption saved by 45% under the same flow rate and heas requirements
Notable power saving

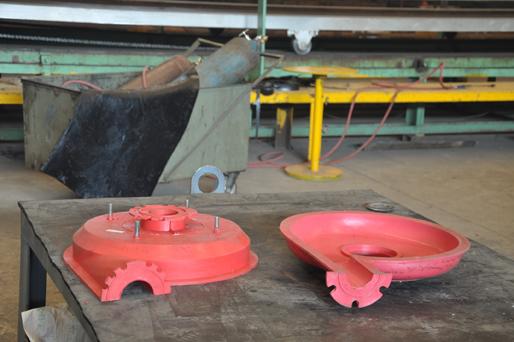

Impeller and lining
High flow rate, overall efficiency improved by 30%
Low specific graviry of lined rubber
Good quality and light weight of impeller and lining
High speed of impeller
The max flow rate and head is 10-20% higher than ordinary slurry pump.
Efficiency improved by 30%
Installation of slurry pump
Low noise, easy maintenance, the running cost can be greatly reduced

Wear – resistant Slurry Pump is composed of three parts: impeller, motor and front lining and back lining
Auxiliary of suspenders can simply remove the pump shell, so it is convenient for maintenance.

Moreover, the impeller is relatively small, and noise can be effectively reduced by 60% with wear-resistant rubber.

Low failure rate greatly reduces the personnel cost and running cost and also ensures the fluent operation.

Applicaiton of XPA slurry pump
Applicaiton of XPA slurry pump

Xinhai Wear – resistant Slurry Pump is suitable for conveying abrasion slurry or corrosive liquid with silid.

Metal smelting plant: conveying slurry.
Sand plant: tranportating and conveying sand and gravel, feeding sand and water to all type of classification and dewatering plants.
Coal preparation plant: classifying, screening and conveying heavy madium, conveying coal pulp.
Irrigation systems and dredging: silt removal in dams and river bed, sand classifying.
Steel works: conveying slurry, rust and corrosive liquid etc.

Please specify if applied to which oil and chemicals are contained.

Wear – resistant Slurry Pump Ordinary pump
Overall lined with red rubber, 1 set insteads 3 sets. Short service life
Notable energy saving, energy saved by 30% High power consumption
Every performance improved by 40% or more Ordinary effection
Noise reduced by 60% Big noise
The lined wear-resistant rubber is easy for maintenance Laborious and time-consuming of maintenance , which affects the whole production line
Greatly reduce the comprehensive running cost High comprehensive running cost

Technical parameters

The working conditions have great effect on the model selection, please let our technicians help you to make the best choice. technical consultation

Specs Flow(m³/h) Max head(m) Rotation speed(rpm) Max. rated power(KW) Max effecy(%) Impeller Dia(mm) Weight(kg) External dimension(mm)
50/50 20-60 38 800-2400 22 51 200 156 725×482×491
80/80 30-100 45 600-2100 45 53 256 326 915×590×595
100/100 60-160 50 600-1600 75 57.5 340 440 999×648×660
150/125 100-260 47 400-1400 110 63 372 608 1280×736×758
200/150 160-450 47 450-1200 132 69 433 736 1313×788×822
250/200 300-900 46 400-1200 250 78 454 1250 1600×812×956
300/250 400-1500 45 300-900 600 73 610 1956 1698×966×1083
